how dropbox handles uploads, downloads and sync

dropbox is one of those apps that feels totally simple until you start designing it. you upload a file, it shows up on your other devices. share it, someone else sees it. but every step here has a real engineering question buried in it. 50GB uploads can't just be a single POST. sharing 100k files across users can't just be a list scan. and getting bytes from a virginia data center to a tokyo client without making them wait 30 minutes? that's a whole separate problem.

this post walks through how i'd actually build it.

what you'll take away

quick pointers so you know what to look for as you read:

what we're building

a cloud file storage service. user uploads a file, downloads it from any device, shares with others, and sees automatic sync across all their connected devices.

scope:

out of scope:

the cap call

availability > consistency. user uploads a file in germany; user in america seeing the old version for a few seconds is fine. dropbox is not a stock exchange. eventual consistency, no problem.

core entities

just two real entities and a user wrapper:

the api

four endpoints, one per feature:

POST /files/presigned-url      → returns a presigned URL to upload to
GET  /files/{fileId}            → returns metadata + presigned download URL
POST /files/{fileId}/share      → body: { users: [...] }
GET  /files/changes?since=...   → returns ChangeEvent[] for delta sync

users come from headers, never from request bodies — keep auth out of payloads.

upload — the presigned URL trick

the obvious way to handle uploads is wrong, and it's worth saying why.

if a user POSTs a 50GB file to your server, two bad things happen. first, you've burned bandwidth uploading the file twice — once from client to your server, once from your server to S3. second, your API gateway probably has a 10MB request body limit (looking at you, AWS API Gateway). you can't even get the bytes through the gate.

the fix is presigned URLs. instead of the file flowing through your server, the client requests a permission slip from your server, then uploads directly to S3 using that slip.

three steps:

  1. client POSTs to /files/presigned-url with just the metadata (name, size, mimeType). server creates a row in FileMetadata with status: uploading, generates a presigned URL via the S3 SDK, returns the URL. no file bytes touch your server.
  2. client PUTs the file directly to the presigned URL. S3 stores it.
  3. S3 fires an event notification to your backend on completion. backend flips status: uploaded.

now your server never holds the bytes. the file goes client → S3 directly. cheap, fast, no payload limits.

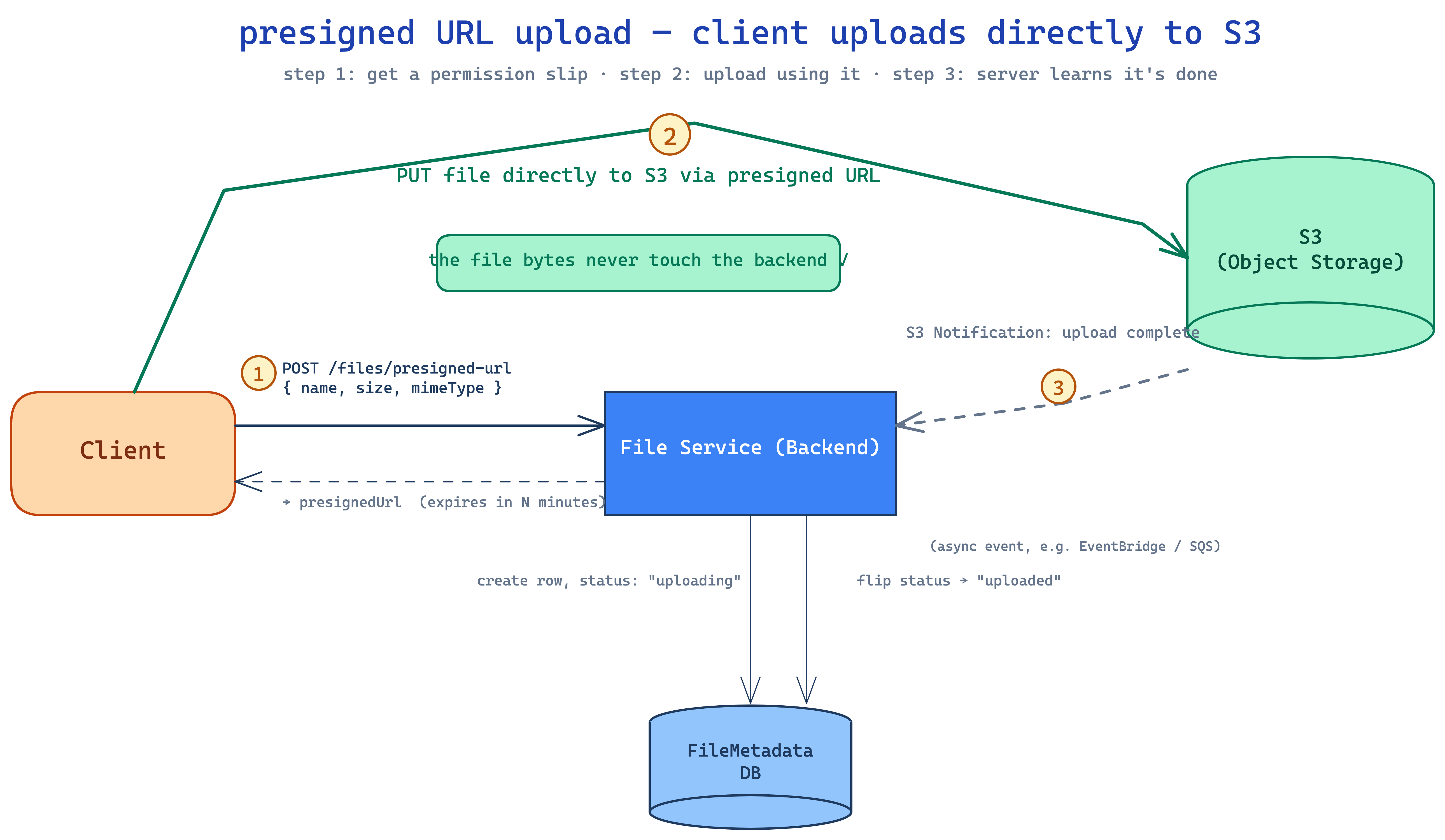

upload via presigned URL — client requests URL from server, uploads directly to S3, S3 notifies server on completion

download — the same trick, in reverse

same idea. client requests metadata from your server, server returns a CDN-signed URL pointing to the file. client fetches from the CDN; CDN serves from cache or pulls from S3 on first miss.

GET /files/{fileId} → { metadata, downloadUrl }

the downloadUrl is a signed CDN URL with a short expiration (5 minutes is typical). without that signature, anyone with the link could download. with it, the CDN verifies the signature and serves only authorized requests.

large files — chunk, fingerprint, resume

50GB on a 100Mbps connection takes ~1 hour. asking the user to start over if their wifi drops 45 minutes in is cruel. and honestly, most browsers and servers won't even accept a single request that large.

the answer is chunking on the client. break the file into 5–10MB pieces. upload each chunk separately. track progress by counting completed chunks. resume by skipping chunks already uploaded.

but how do you know which chunks have been uploaded? you can't go by file name — two users can upload files with identical names. you need a content-derived id. that's a fingerprint — a SHA-256 (or similar) hash of the bytes.

so the metadata grows:

{
  "id": "uuid-123",
  "fingerprint": "sha256:ab12...",
  "name": "movie.mp4",
  "status": "uploading",
  "chunks": [
    { "id": "chunk-1-fp", "status": "uploaded", "etag": "..." },
    { "id": "chunk-2-fp", "status": "uploading" },
    { "id": "chunk-3-fp", "status": "not-started" }
  ]
}

when the client resumes, it computes the file fingerprint, asks the server "have we seen this?", gets back the chunks array, and uploads only the missing ones.

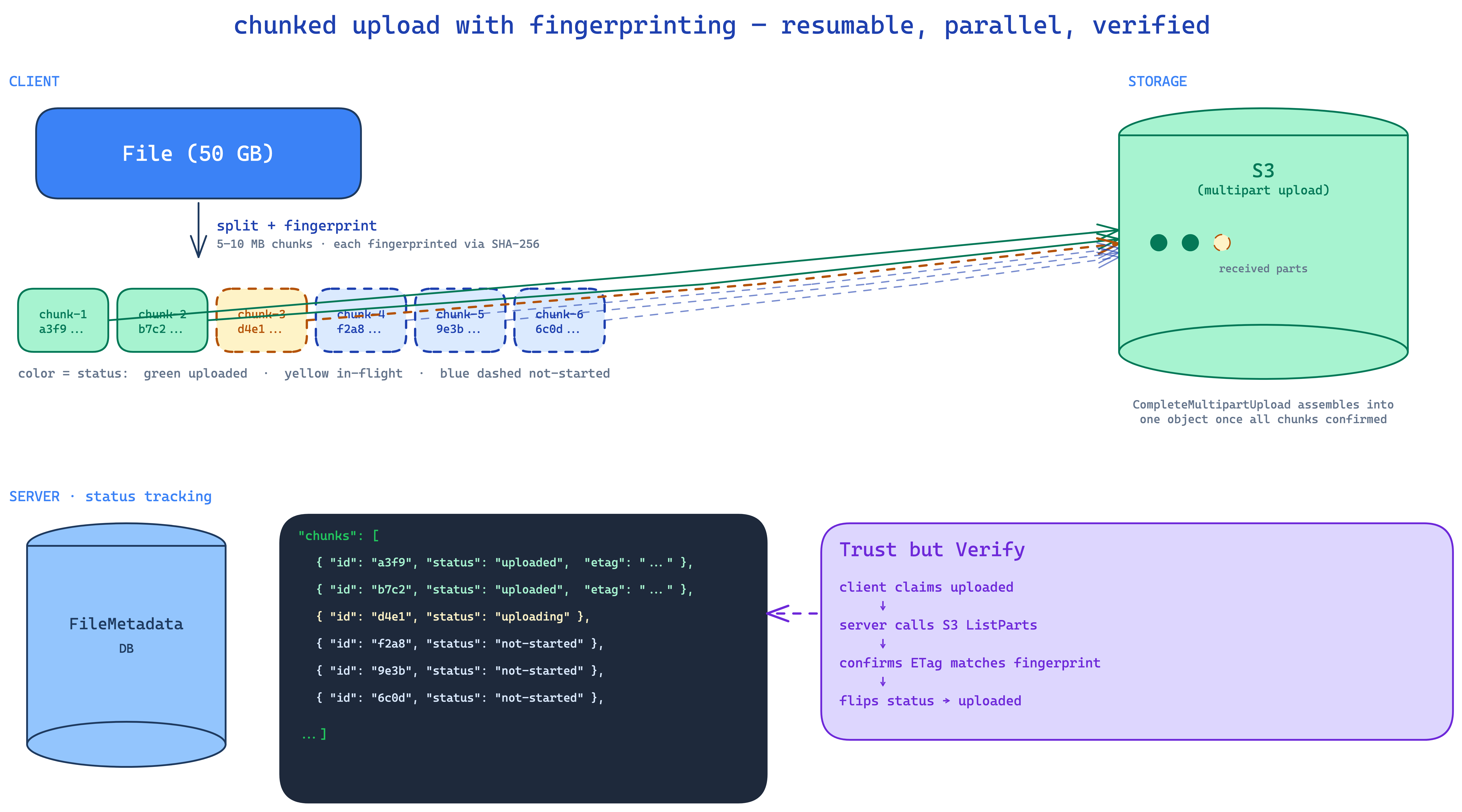

chunked upload with fingerprinting — client splits file, computes per-chunk fingerprints, uploads each chunk to S3 via presigned URL, server tracks status and verifies via ListParts

trust but verify

how does the server know a chunk was actually uploaded? naive answer: client sends a PATCH after each chunk completes. problem: a malicious client can lie. they could mark all chunks uploaded without uploading any, leaving you with metadata that says "complete" pointing at empty S3 objects.

the fix is trust but verify. when the client claims chunk N is uploaded with ETag X, your backend calls S3's ListParts API to confirm. only after S3 vouches do you flip the chunk to uploaded. once all chunks check out, call CompleteMultipartUpload to assemble them into a single S3 object.

S3's multipart upload API basically packages this whole flow. you can use it directly, but knowing what's underneath makes the trade-offs visible.

sharing — separate table, not a list field

the obvious approach is to add a sharelist: [user1, user2] field to file metadata. it works for "is this user allowed?" but it falls apart on the inverse query: "show me everything shared with me." you'd have to scan every file's sharelist looking for the user. terrible.

put it in its own table:

SharedFiles
| userId (PK) | fileId (SK) |
| user1       | fileId1     |
| user1       | fileId2     |
| user2       | fileId3     |

now both directions are O(1). "show me everything shared with me" is a single index lookup on userId. "is user X allowed?" is a single point read on (user, fileId). cheap.

sync — push + poll hybrid

every connected device needs to know when files change. two options:

dropbox uses both. WebSocket as the primary path, polling as the safety net.

the client opens a single WebSocket per device (not per file). the server pushes change notifications for any file the user has access to. if the WebSocket drops or messages get lost, the client is also calling GET /files/changes?since={timestamp} every few minutes. anything missed by the push gets caught by the poll.

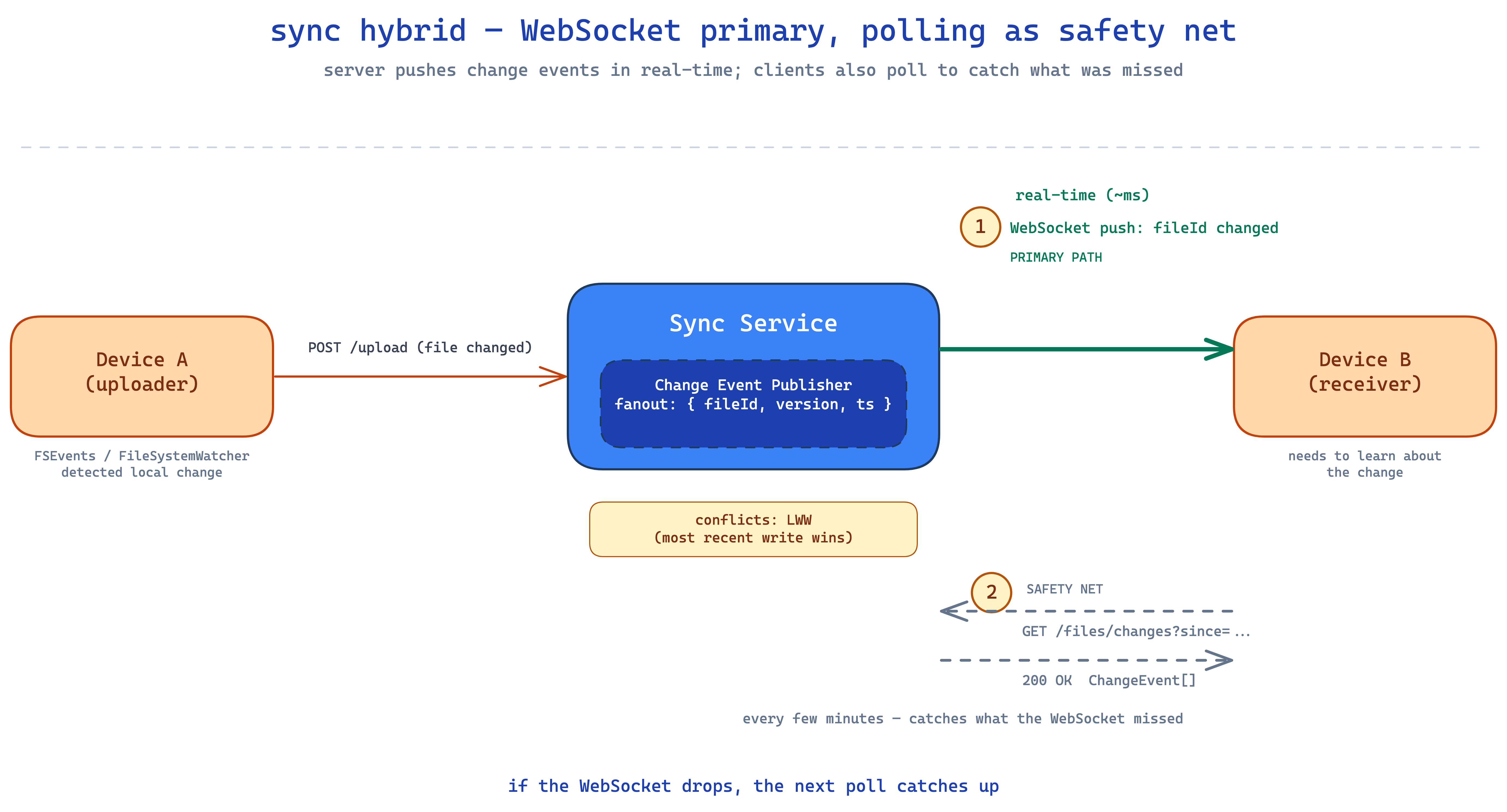

sync hybrid — primary WebSocket push for real-time, periodic poll as safety net, last-write-wins on conflicts

on the local side, each OS gives you a file watcher (FSEvents on macOS, FileSystemWatcher on windows). when something changes locally, the client agent uploads it to remote. last-write-wins for conflicts.

delta sync — only ship the chunks that changed

once chunking is in place, sync gets a free win: when a file changes, we only need to upload (or download) the chunks that actually changed, not the whole file.

but there's a subtlety. if you chunk by fixed sizes (every 5MB), inserting a single byte at the start of the file shifts all chunk boundaries. now every chunk's fingerprint is different. delta sync becomes useless.

the fix is content-defined chunking (CDC) — chunk boundaries are determined by the file's content using a rolling hash (Rabin fingerprinting). a byte inserted near the start only affects the chunks immediately around it; the rest stay identical. this is how real systems achieve actual delta sync efficiency.

the final wiring

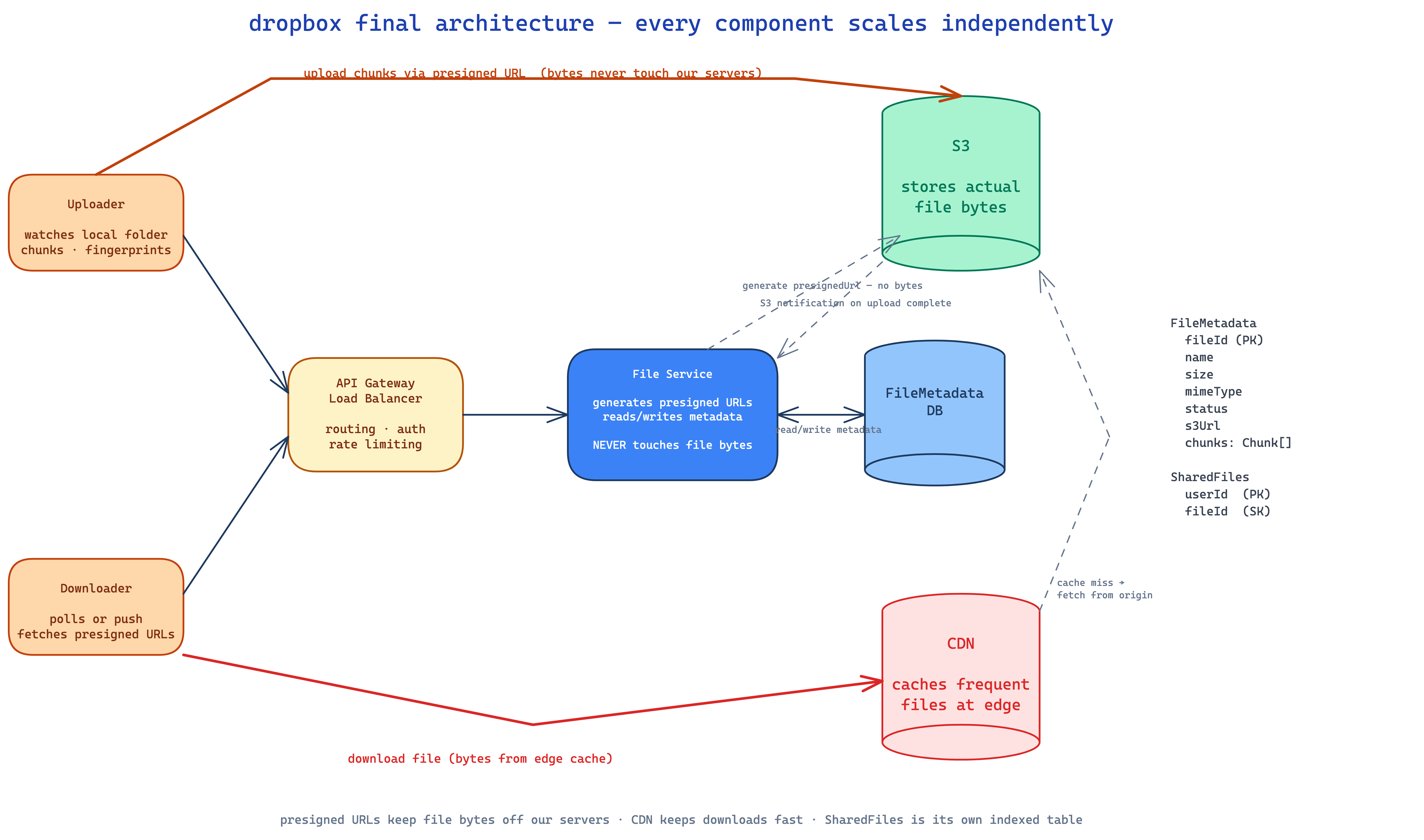

final dropbox architecture — uploader/downloader clients, API gateway, file service, file metadata DB, S3, CDN, SharedFiles table

what each component does:

security in two minutes

what i'd remember

nothing here is novel. S3 multipart upload, presigned URLs, signed CDN URLs, file watchers — it's all off-the-shelf. the design is in the wiring. you're paid to solve a problem, not to ship the fanciest architecture.
